Zenith Disc Pro

The all new Zenith Disc is the most technologically advanced bike that DK has ever assembled. This podium topping pro level racer is built on the 100% custom crafted Zenith frame with patent pending sliding flat mount disc brake system.

Zenith’s share the same proven low-profile geometry as the DK Professional frame providing max speed and stability. Available in six frame sizes including the Zenith Disc 24-inch cruiser. All matched with pro level componentry: BOX X5 carbon fiber forks, DUO Brand drivetrains, and Maxxis rubber. Made to accelerate. Engineered for winning.

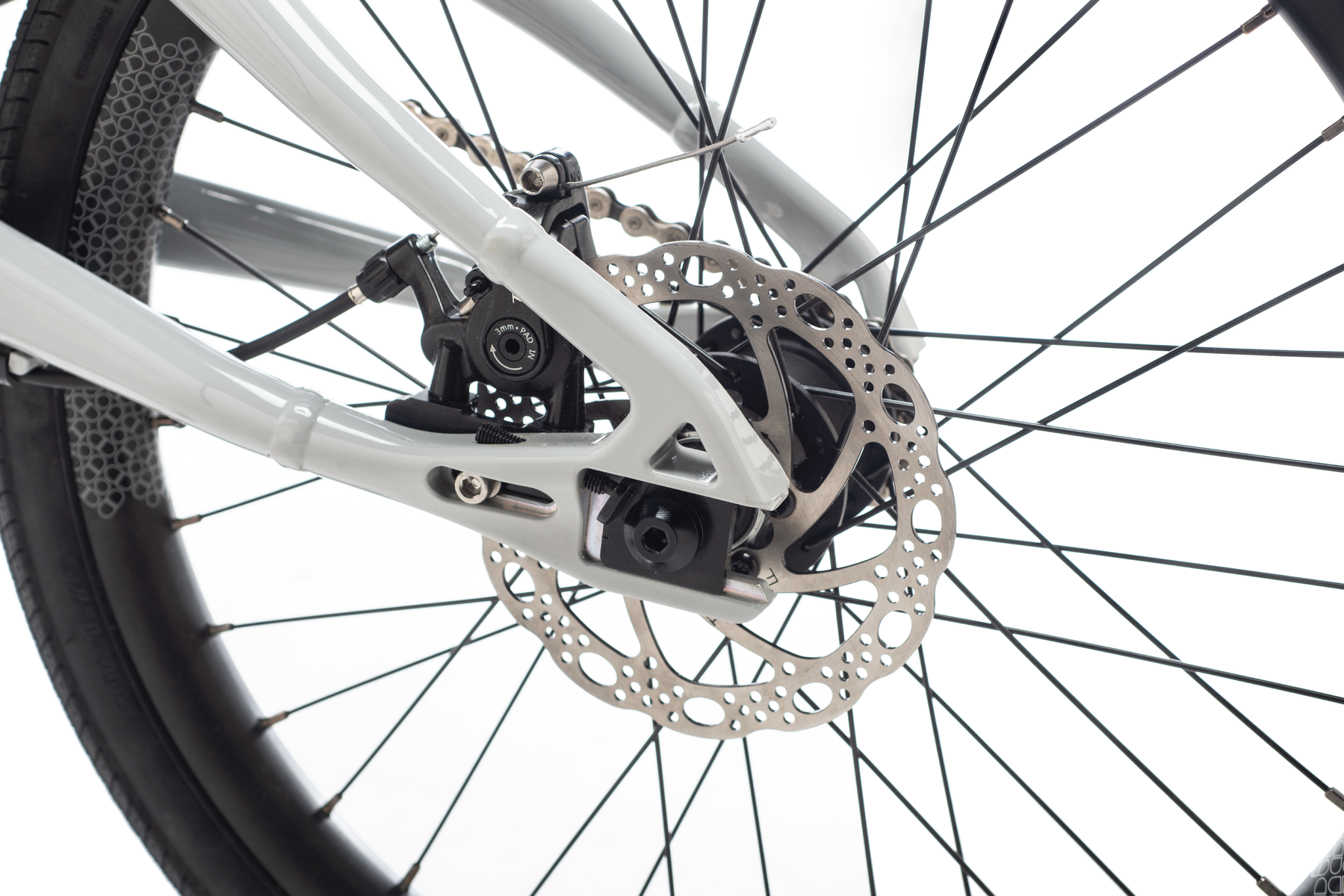

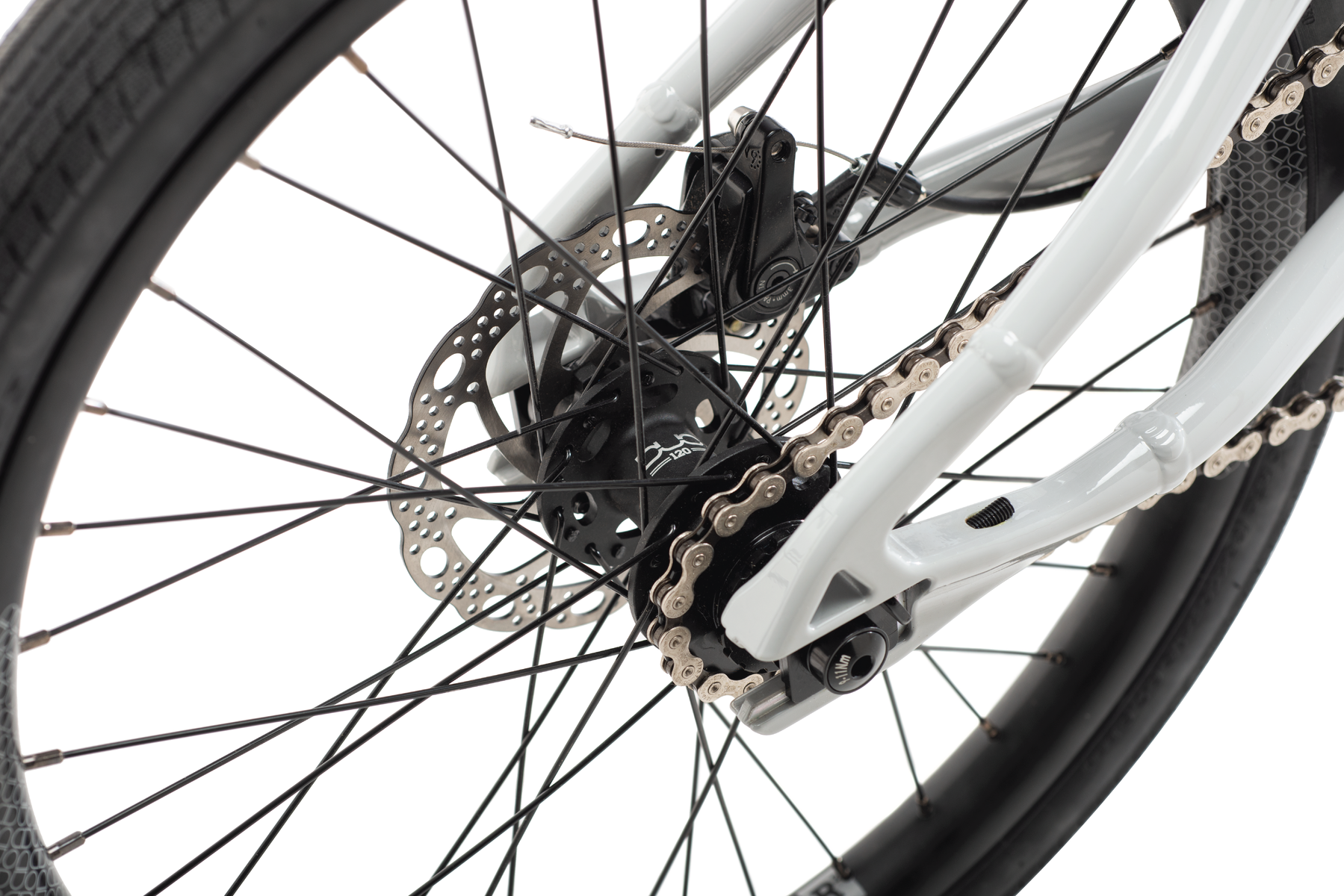

NOTE: The DK Zenith Disc frame is compatible with flat-mount disc brakes only. Flat-mount is more compact and lighter than post mount. With flat-mount, the rear caliper affixed with two bolts running through a flattened frame surface and then threading directly into the caliper (or an adapter affixed to the caliper).






    SPECIFICATIONS

    Frame

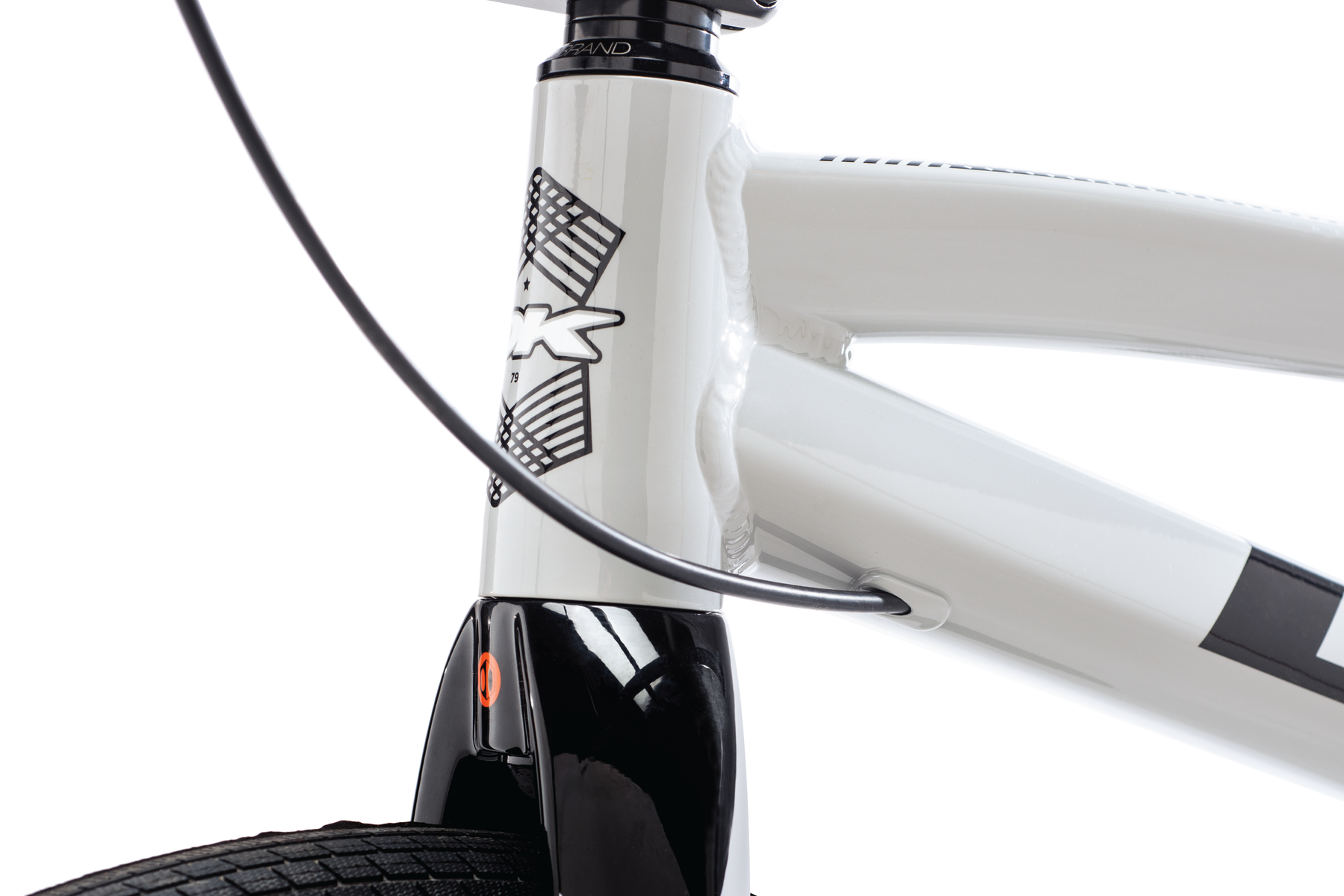

    DK Professional X hydroformed 6061 aluminum frame with tapered head tube and internal cable routing
    Rims
    DUO Brand R2, double wall, 36-hole, front and rear specific design

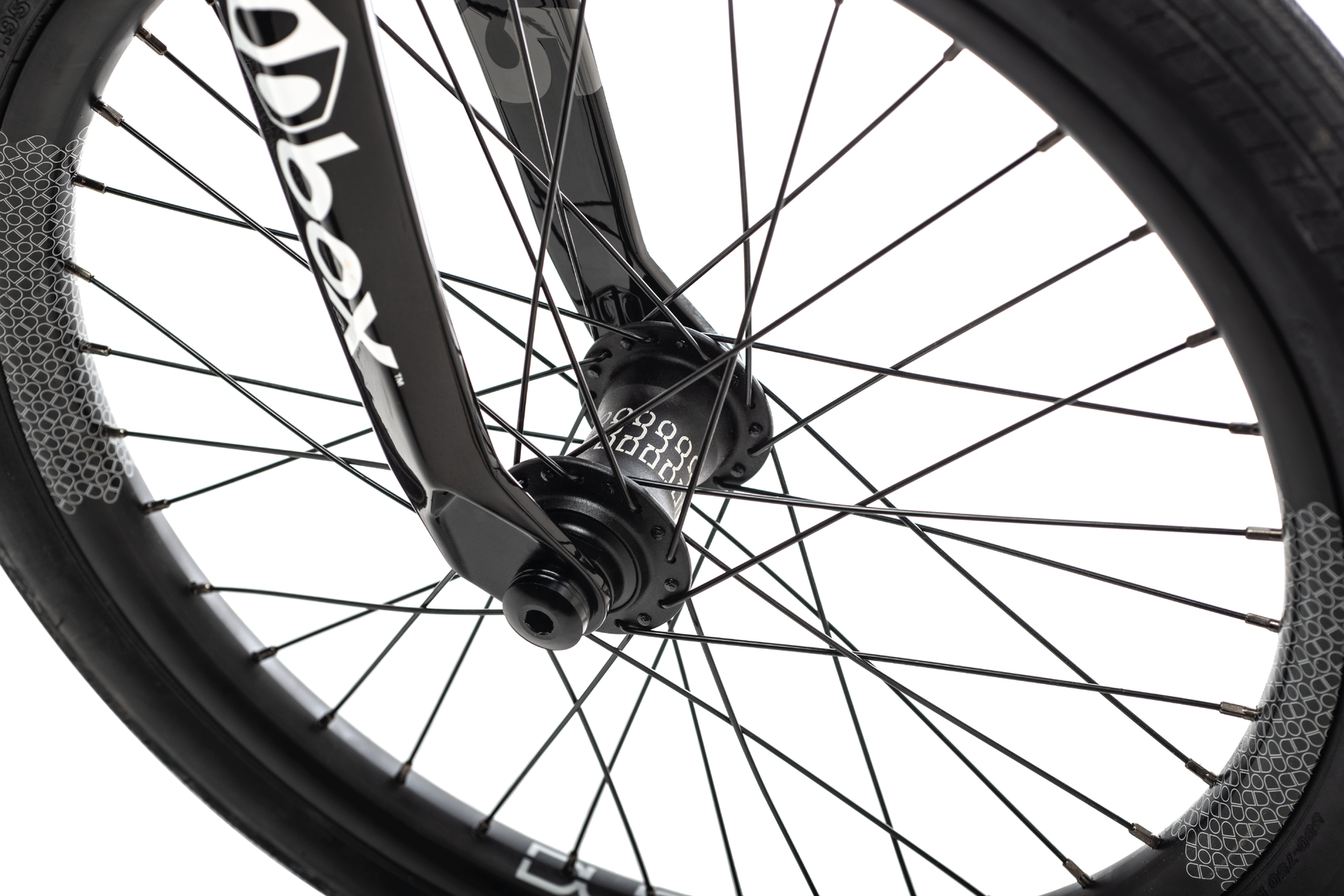

    Fork
    BOX X⁵ carbon with 20mm thru-axle
    Front Hub
    DUO Brand R2, fully sealed, 20mm thru-axle

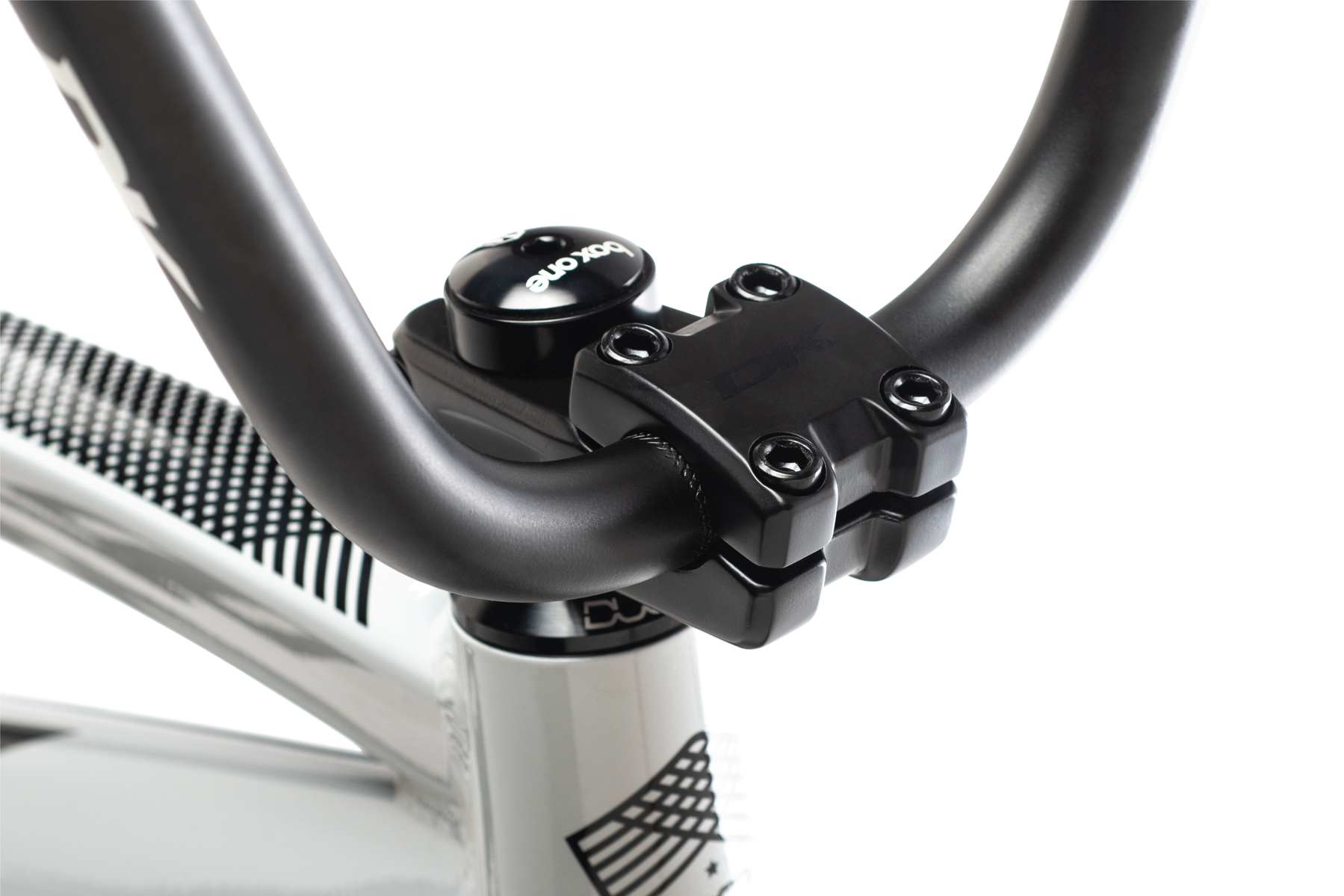

    Handlebar
    8” rise, 100% chromoly
    Rear Hub
    DUO Brand R2 Disc, fully sealed, 15mm thru-axle, 16-tooth cassette with 120 engagement points


    Grips
    DK Tsuka lock-on with press-in bar plugs
    Top Tube Length
    20.5”


    Stem
    DK forged alloy top load, 50mm reach

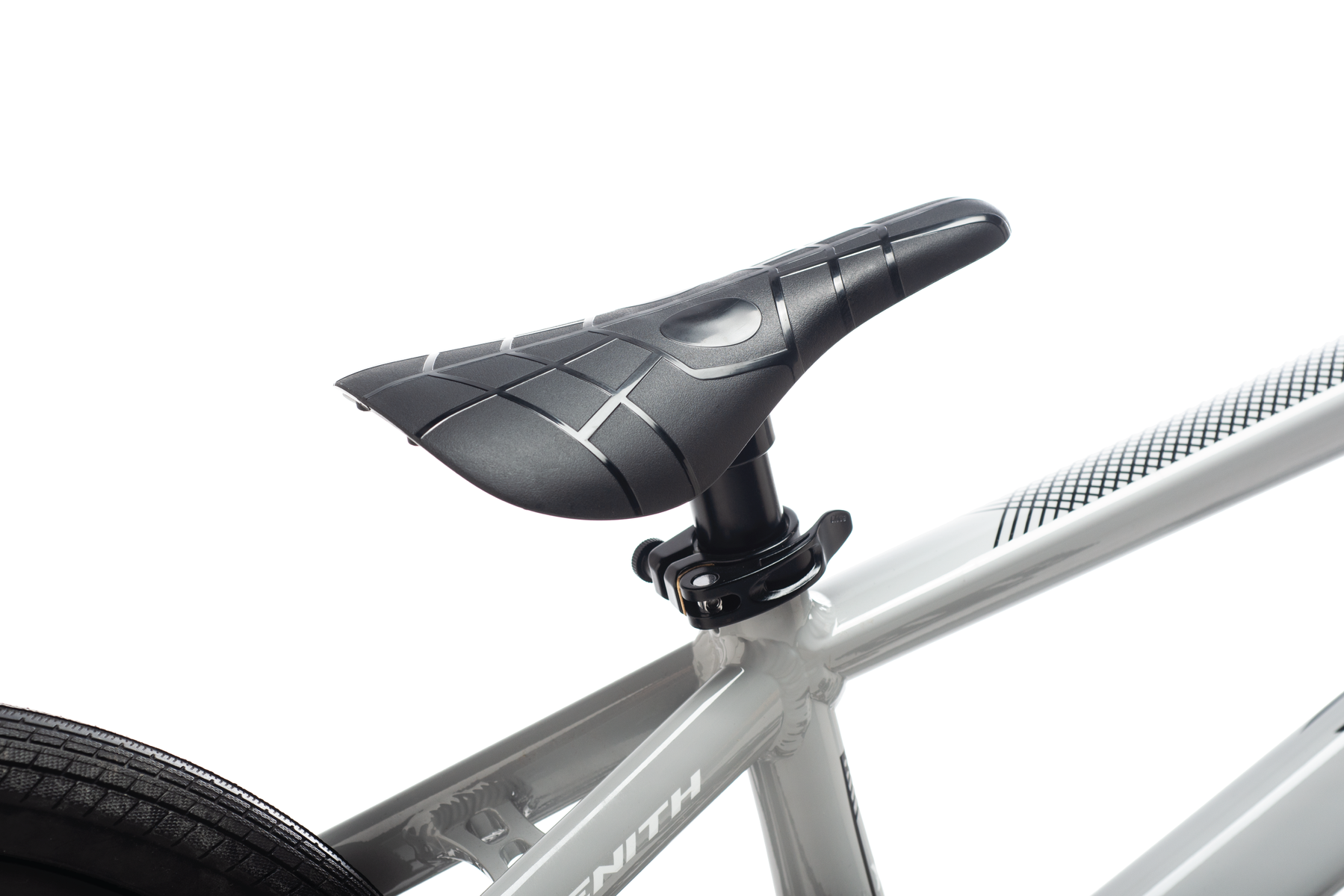

    Seat
    BOX Echelon 1-piece seat/post combo


    Headset
    DUO Brand, sealed integrated, tapered
    Seat Post
    Integrated, 27.2mm, alloy

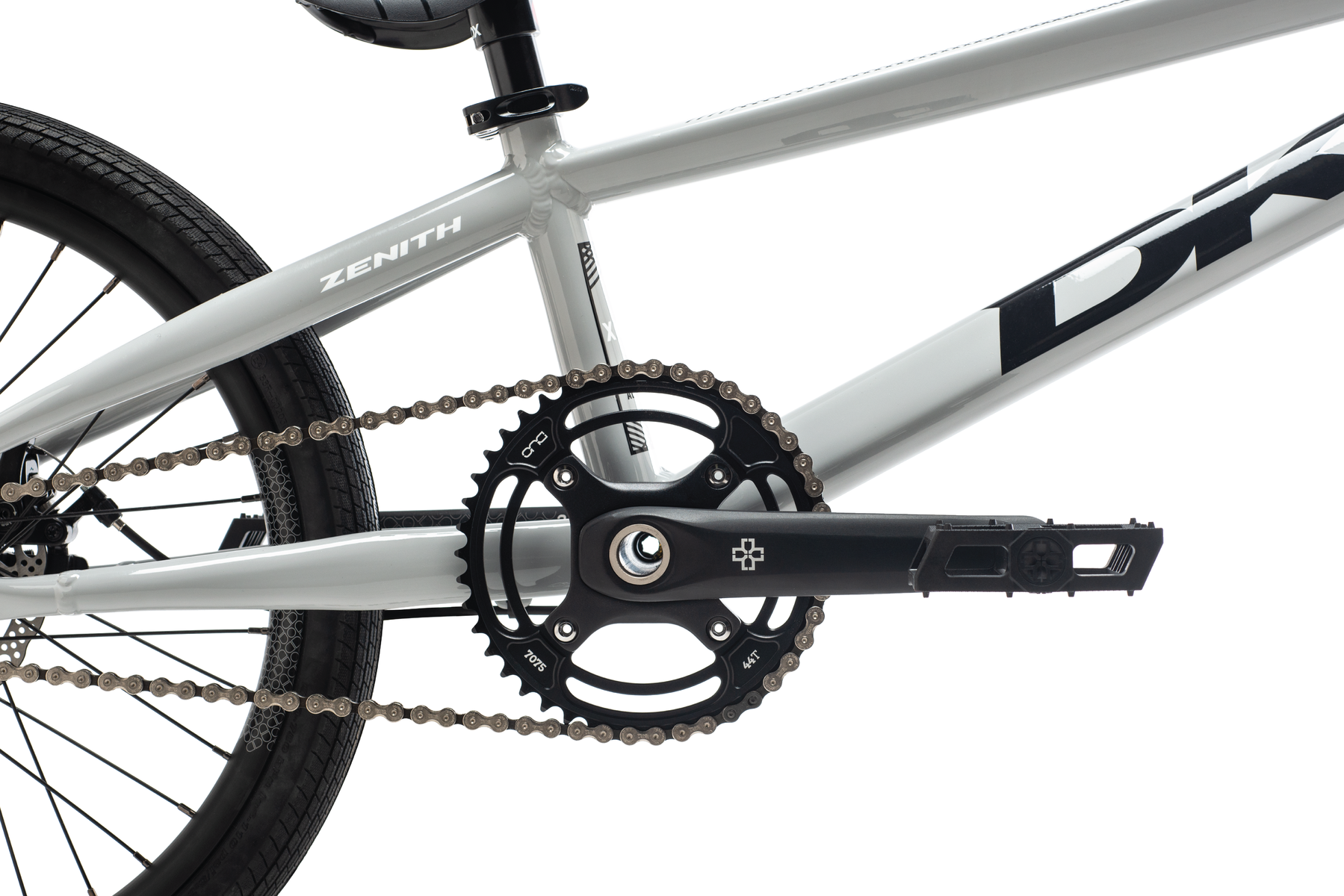

    Cranks
    DUO Brand C2 forged hollow alloy 2-piece, 175mm
    Seat Post Clamp
    Promax quick-release


    BB
    European external (outboard)
    Tyres
    20x1.75” (rear), 20x1.95” (front) Maxxis Torch


    Pedals
    DUO Brand Resilite platform
    Chain Stay
    14.83”


    Sprocket
    DUO Brand 44-tooth, CNC machined, alloy, 4-bolt chainring
    Colour
    Destroyer Gray with Black Ano parts


    Chain
       Taya TB980 3/32”
    RRP
    $2,799
